🕵️ Grafana et les logs / traces
Estimated time to read: 3 minutes
Quand on parle de monitoring, on distingue souvent trois types de données :
- Les métriques
- Les logs
- Les traces
Nous avons déjà vu comment afficher les métriques dans Grafana en s'appuyant sur Prometheus, mais il est aussi possible d'afficher les logs et les traces.
Ajout des DS Loki et Tempo

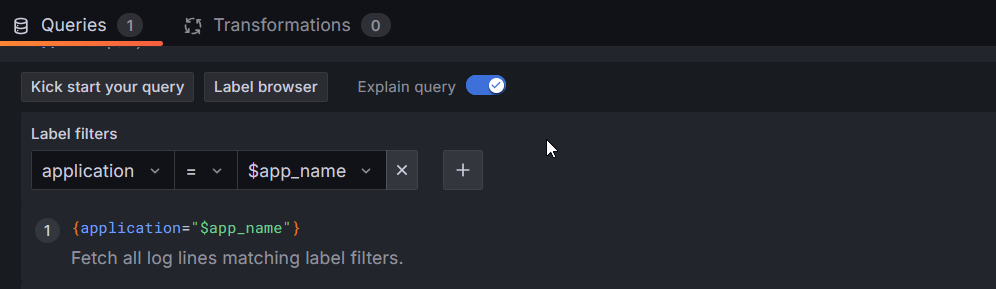

Pour celà on vas configurer Grafana pour qu'il puisse se connecter à Loki et Tempo.
Objectifs:

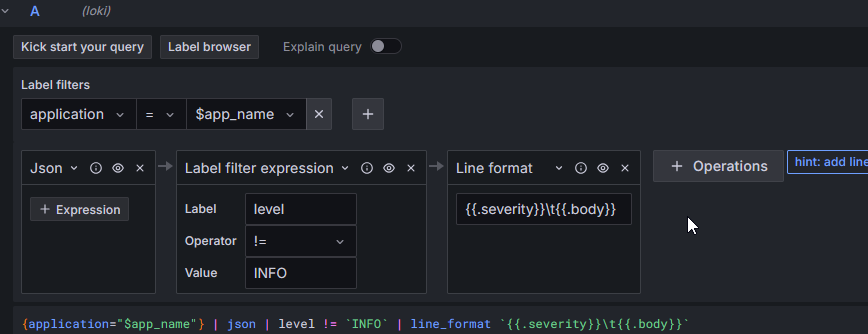

- Si ce n'est pas déjà fait la datasource pour
Prometheusici - Une data source pour se connecter à l'instance
Loki(Le storage pour nos logs)- URL : http://loki:3100

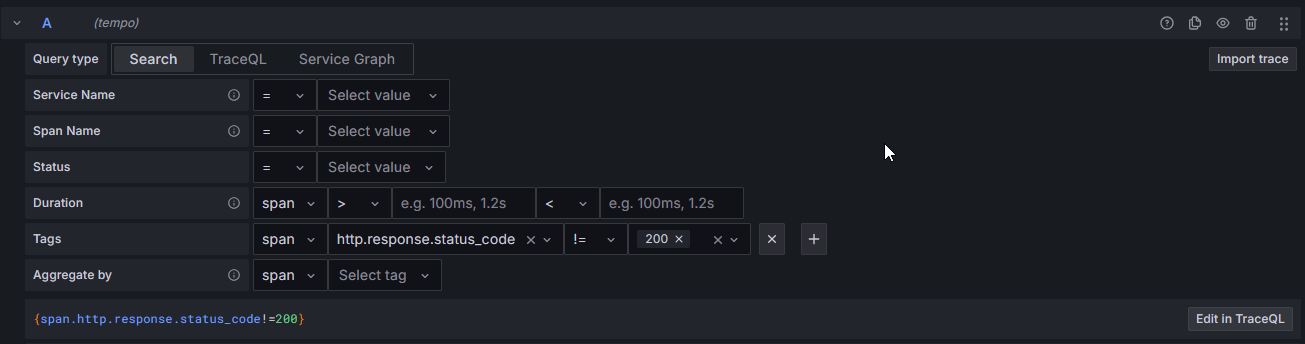

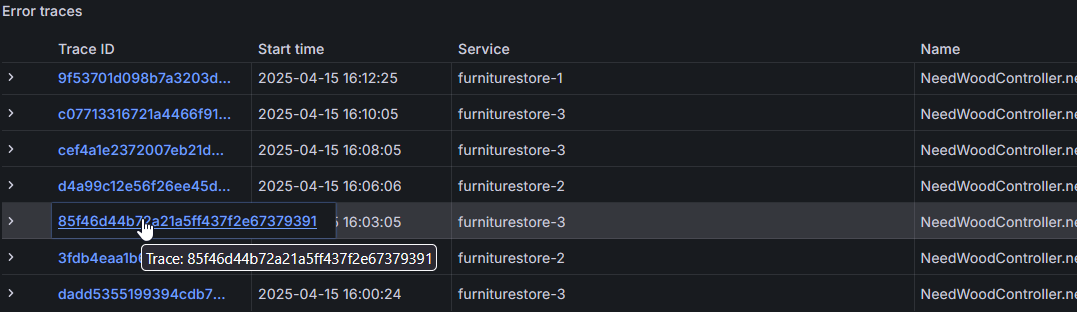

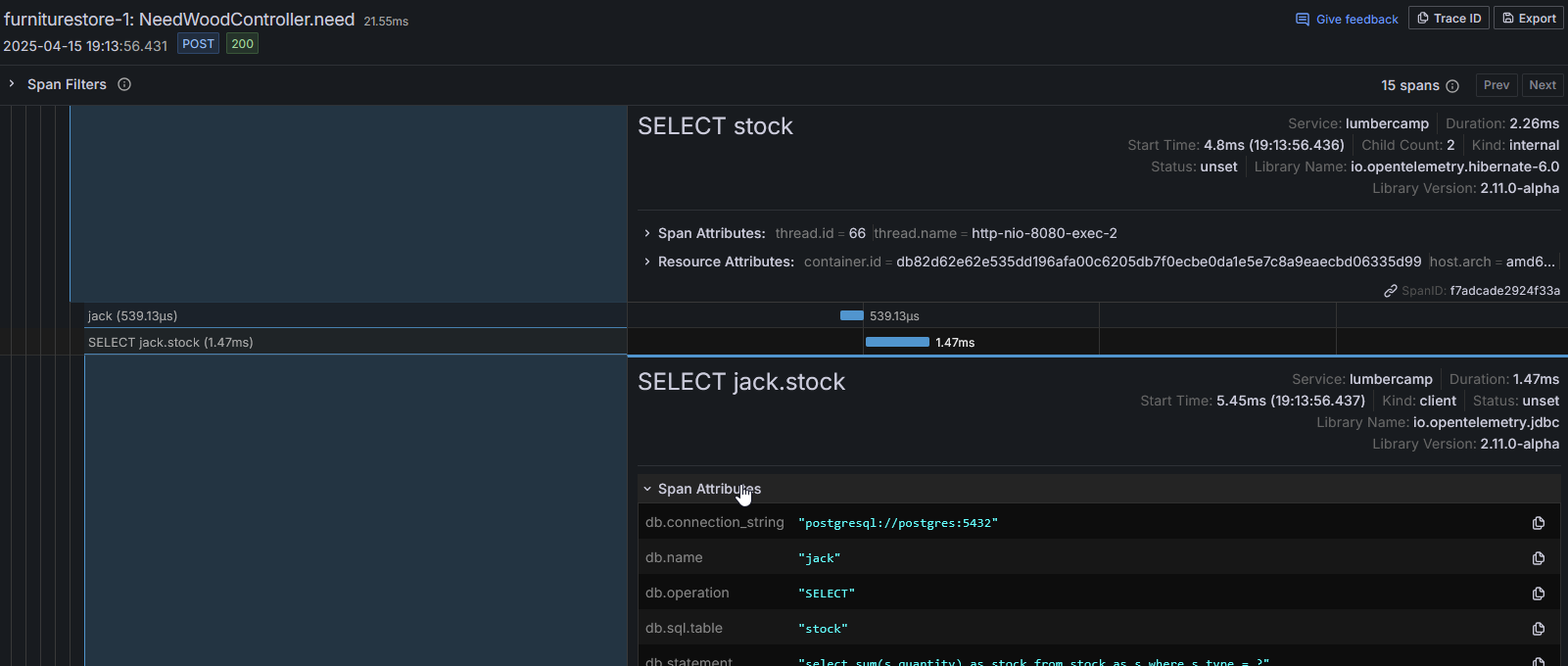

- Une data source pour se connecter à l'instance
Tempo(le storage pour les traces)- URL : http://tempo:3200
- Trace to metrics : "prometheus"
- Trace to Logs : "loki"
Les logs sont ici gérés par Grafana Loki et les traces par Grafana Tempo. Nous allons importer le dashboard suivant pour manipuler les logs et les traces.
